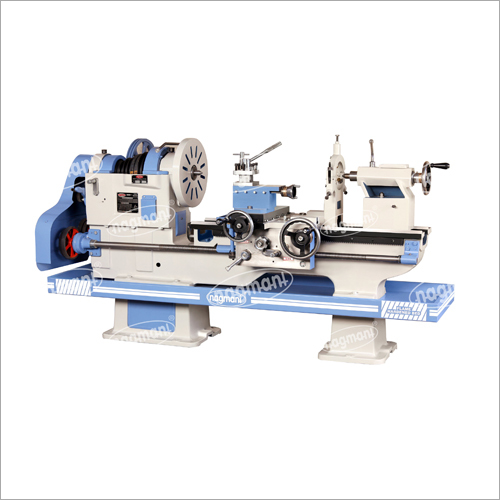

Cone Pulley Extra Heavy Duty Lathe Machine

300000.00 - 1500000.00 INR

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 300000.00 - 1500000.00 INR

Trade Information

Payment Terms Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)

Product Description

"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Provided Cone Pulley Extra Heavy Duty Lathe Machine can be accessed in different specifications to meet exact needs of our valued clients. This machine has wide applications in different industries that include rubber roller production, paper mill, sugar refinery, heavy engineering, automobile and general engineering as well as maintenance workshops.

BED	EX.HD-457	EX.HD-508	EX.HD-558
Flat & "V" Guide Ways With Gap / Leg type or Planner type
Width of Bed	18"(457)	20"(508)	22"(558)
Length of Gap	6"(150)	6"(150)	6"(150)
Length of Gapin Front of Fce Plate	8"(205)	8"(205mm)	10"(250)

CAPACITY	EX.HD-457	EX.HD-508	EX.HD-558
Height of Centre	18"(457)	20"(508)	22"(558)
Swing over Bed	34"(850)	38"(950)	42"(1050)
Swing over Cross Slide	24"(600)	27.5"(685)	31.5"(785)
Swing in Gap	46.4"(1160)	50.8"(1270)	54.4"(1360)
Movement of Cross Slide	16"(400)	20"(500)	22"(550)
Movement of Compound Slide	9"(225)	9"(225)	9"(225)

MAIN SPIDLE	EX.HD-457	EX.HD-508	EX.HD-558
Spindle Nose	Threaded	Threaded	Threaded
Spindle Bore	80mm	104mm	104mm
Taper Bore	MT-6	MT-6	MT-6

ELECTRIC	EX.HD-457	EX.HD-508	EX.HD-558
Suitable Electrical HP	7.5 HP III Phase	7.5 HP III Phase	7.5 HP /10 HP III Phase

TAIL STOCK SPIDLE	EX.HD-457	EX.HD-508	EX.HD-558
Diameter	76mm	100mm	100mm
Morse Taper	MT-5	MT-5	MT-5
Travel	260mm	260mm	300mm

SPEED	EX.HD-457	EX.HD-508	EX.HD-558
No. of Speed	8	8	8
RPM Low & High	20-200RPM	20-200RPM	20-200RPM

THREADS	EX.HD-457	EX.HD-508	EX.HD-558
Metric Thread	(Total-13) / 1 to 6m.m.	(Total-13) / 1 to 6m.m.	(Total-13) / 1 to 6m.m.
Inch Thread	(Total-20) / 1 to 24 TPI	(Total-20) / 1 to 24 TPI	(Total-20) / 1 to 24 TPI
Lead Screw Dia/thread	50.8mm / 2TPI	50.8mm / 2TPI	50.8mm / 2TPI

DRIVE	EX.HD-457	EX.HD-508	EX.HD-558
Counter to Spindle	C-88	C-88	C-88
Counter to Motor	C-86	C-86	C-86

MODEL EX.HD 457 / 508 / 558
Length of Bed	7'(2135)	9'(2745)	10'(3040)	12'(3655)	14'(4270)	16'(4875)	18'(5472)	20'(6080)
Admin Between Centre	700mm	1300mm	1600mm	2200mm	2800mm	3400mm	4000mm	4600mm
