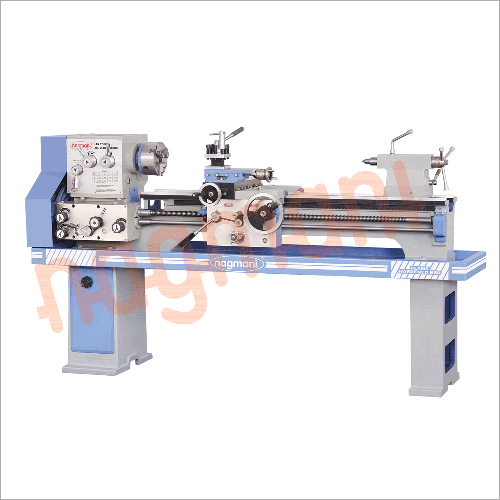

12 Feet Planner Type Extra Heavy Duty Geared Head Lathe Machine

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Extra Heavy Duty Geared Head Lathe Machine is specially Designed for the High RPM Upto 310. The Gears are equipped to obtain different speeds, which can be more than 9 Spindle speeds. This Machine is Widely used in Heavy Rubber Roll Mill, Extra Heavy Works, automobiles, power plants, aerospace, Etc

BED	EX HAG 558	EX HAG 610	EX HAG 660	EX HAG 710
Flat & V Guide Way with Gap / Planner type Bed
Width of Bed	24"(610)	26"(660)	28"(710)	30"(760)
Length of Gap	6"(150)	6"(150)	6"(150)	6"(150)
Length of Gapin Front of Fce Plate	10"(250)	10"(250)	10"(250)	10"(250)

CAPACITY	EX HAG 558	EX HAG 610	EX HAG 660	EX HAG 710
Height of Centre	22"(558)	24"(610)	26"(660)	28"(710)
Swing Over Bed	41"(1040)	45"(1145)	50"(1270)	53"(1350)
Swing Over Cross Slide	30"(750)	34"(850)	38"(950)	41"(1040)
Swing In Gap	57"(1440)	61"(1550)	65"(1650)	68"(1730)
Movement of Cross Slide	22"(550)	24"(600)	26"(650)	28"(700)
Movement of Compound Slide	8"(200)	8"(200)	9"(230)	9"(230)

MAIN SPIDLE	EX HAG 558	EX HAG 610	EX HAG 660	EX HAG 710
Type of Spindle	A2-11 type	A2-11 type	A2-11 type	A2-11 type
Spindle Bore	125mm	125mm	125mm	125mm
Spindle Morse Taper	MT-6	MT-6	MT-6	MT-6
Spindle Adapter Morse Taper
No. of Speed / RPM Range	8 / 14-200 RPM	8 / 14-200 RPM	8 / 14-200 RPM	8 / 14-200 RPM

TAIL STOCK SPIDLE	EX HAG 558	EX HAG 610	EX HAG 660	EX HAG 710
Diameter	88mm	88mm	88mm	88mm
Morce Taper	MT-5	MT-5	MT-5	MT-5
Travel	300mm	300mm	300mm	300mm

THREADS(FOR FULLY NORTON GEAR BOX.)	EX HAG 558	EX HAG 610	EX HAG 660	EX HAG 710
Metric Thread	(Total-24) / 0.5 to 15m.m	(Total-24) / 0.5 to 15m.m	(Total-24) / 0.5 to 15m.m	(Total-24) / 0.5 to 15m.m
Inch Thread	(Total-43) / 2 to 60 TPI	(Total-43) / 2 to 60 TPI	(Total-43) / 2 to 60 TPI	(Total-43) / 2 to 60 TPI
Lead Screw Dia	50.8mm / 2TPI	50.8mm / 2TPI	50.8mm / 2TPI	50.8mm / 2TPI

ELECTRICALS	EX HAG 558	EX HAG 610	EX HAG 660	EX HAG 710
Motor Power	10 HP III Phase	10 HP / 15 HP III Phase	15 HP III Phase	15 HP III Phase

MODEL EX.HAG 558 / 610 / 660 / 710
Length of Bed	9'(2745)	10'(3040)	12'(3655)	14'(4270)	16'(4875)	18'(5472)	20'(6080)	22'(6680)	24'(7290)	26'(7900)	28'(8500)
Admin Between Centre	900mm	1200mm	1800mm	2400mm	3000mm	3600mm	4200mm	4800mm	5400mm	6000mm	6600mm
